조직도는 html과 css 기준으로 작업됩니다.
내용 전달을 위해 이미지 보다는 텍스트 처리를 권장합니다

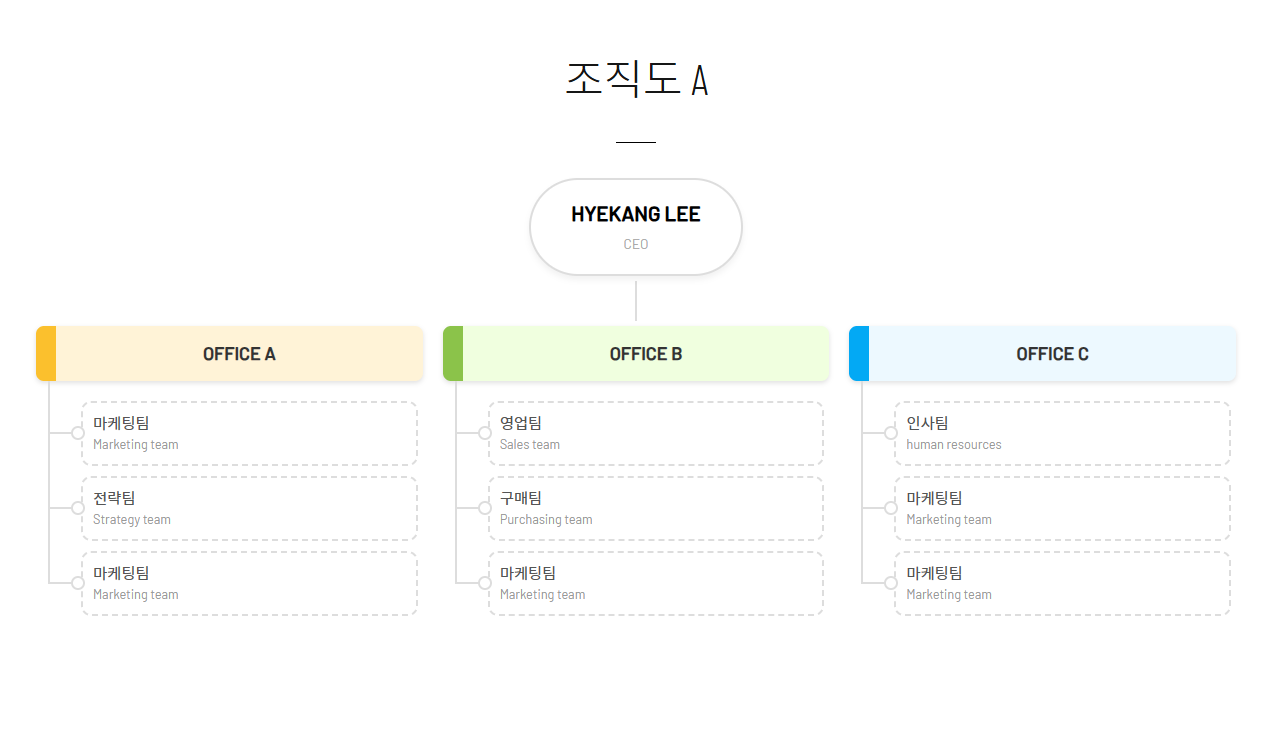

<style>
/* 컨테이너 */
.org-container-style1 {
max-width: 1200px;
margin: 0 auto;
text-align: center;
}
/* CEO 스타일 */
.org-container-style1 .ceo-section {
margin-bottom: 5px;
position: relative;
display: flex;
flex-direction: column;
align-items: center;
}
.org-container-style1 .ceo-card {
background: #fff;
border: 2px solid #ddd;
padding: 18px 40px 15px;
border-radius: 50px;
display: inline-block;
position: relative;
box-shadow: 0 4px 6px rgba(0, 0, 0, 0.05);
}
.org-container-style1 .ceo-card .name {
display: block;
font-weight: bold;
color: #000;
font-size: 1.2rem;
}
.org-container-style1 .ceo-card .title {
display: block;
font-size: 0.8rem;
color: #aaa;
}
/* 연결선 (데스크탑용 수직선) */
.org-container-style1 .connector-line-v {
width: 2px;
height: 40px;
background-color: #ddd;
margin-top: 5px;
}
/* 오피스 레이아웃 (Flexbox) */
.org-container-style1 .office-wrapper {
display: flex;
justify-content: space-around;
gap: 20px;
align-items: flex-start;
}
.org-container-style1 .office-column {
flex: 1;
min-width: 250px;
}
/* 오피스 헤더 */
.org-container-style1 .office-header {
padding: 12px;
border-radius: 8px;
font-size: 18px;
color: #fff;
font-weight: bold;
margin-bottom: 20px;
background: #fff;
color: #333;
box-shadow: 0 2px 5px rgba(0, 0, 0, 0.12);
position: relative;
border-left: 20px solid #ddd;
}
.org-container-style1 .color-yellow {
background: #fff3d7;
border-left-color: #fbc02d;
}
.org-container-style1 .color-green {
background: #f0ffdf;
border-left-color: #8bc34a;
}
.org-container-style1 .color-blue {
background: #edf9ff;
border-left-color: #03a9f4;
}
/* 팀 카드 리스트 */
.org-container-style1 .team-list {
display: flex;
flex-direction: column;
gap: 10px;
align-items: center;
position: relative;
}
.org-container-style1 .team-list::before {
content: '';
position: absolute;
left: 12px;
top: -20px;
width: 2px;
height: calc(100% - 12px);
background: #ddd;
}
.org-container-style1 .team-card {
background: #fff;
border: 2px dashed #ddd;
border-radius: 10px;
padding: 10px;
margin-left: 40px;
width: calc(100% - 50px);
text-align: left;
font-size: 0.9rem;
color: #555;
position: relative;
line-height: 20px;
}
.org-container-style1 .team-card span {
font-size: 0.75rem;
color: #999;
}
/* 팀 카드 연결선 (가로) */
.org-container-style1 .team-card::before {
content: '';
position: absolute;
left: -12px;
top: 50%;
width: 14px;
height: 14px;
border-radius: 50%;
z-index: 2;
border: 2px solid #ddd;
background: #fff;
transform: translateY(-50%);
}
.org-container-style1 .team-card::after {
content: '';
position: absolute;
left: -34px;
width: 24px;
top: 50%;
z-index: 1;
height: 2px;
background: #ddd;
transform: translateY(-50%);
}
/* 모바일 반응형 처리 (768px 이하) */
@media (max-width: 768px) {
.org-container-style1 .office-wrapper {
flex-direction: column;
align-items: center;
}
.org-container-style1 .office-column {
width: 100%;
margin-bottom: 40px;
}
.org-container-style1 .connector-line-v {
height: 30px;
}
/* 모바일에선 가독성을 위해 상단 선 제거 */
}
</style>
<div class="org-container org-container-style1">
<header class="ceo-section">
<div class="ceo-card">
<span class="name">HYEKANG LEE</span>
<span class="title">CEO</span>
</div>
<div class="connector-line-v"></div>
</header>
<div class="office-wrapper">
<div class="office-column">
<div class="office-header color-yellow">OFFICE A</div>
<div class="team-list">
<div class="team-card">마케팅팀<br><span>Marketing team</span></div>
<div class="team-card">전략팀<br><span>Strategy team</span></div>
<div class="team-card">마케팅팀<br><span>Marketing team</span></div>
</div>
</div>
<div class="office-column">
<div class="office-header color-green">OFFICE B</div>
<div class="team-list">
<div class="team-card">영업팀<br><span>Sales team</span></div>
<div class="team-card">구매팀<br><span>Purchasing team</span></div>
<div class="team-card">마케팅팀<br><span>Marketing team</span></div>
</div>
</div>
<div class="office-column">
<div class="office-header color-blue">OFFICE C</div>
<div class="team-list">
<div class="team-card">인사팀<br><span>human resources</span></div>
<div class="team-card">마케팅팀<br><span>Marketing team</span></div>
<div class="team-card">마케팅팀<br><span>Marketing team</span></div>
</div>
</div>
</div>
</div>

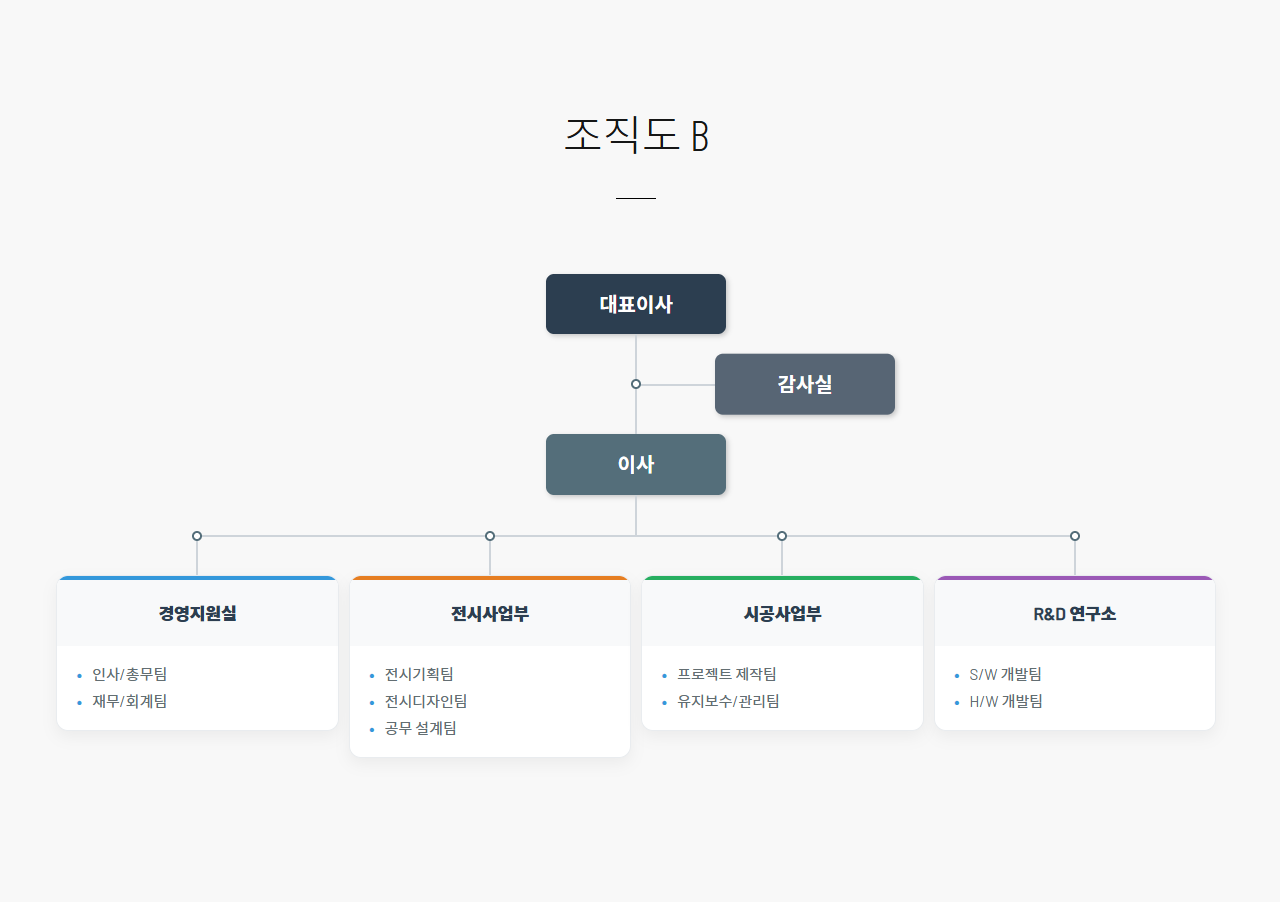

<style>
.org-container-style2 {
max-width: 1200px;
margin: 0 auto;
text-align: center;
padding: 40px 20px;
}
/* 노드 공통 스타일 */
.org-container-style2 .node {
display: inline-block;
padding: 15px 40px;
color: #fff;
font-size: 20px;
font-weight: bold;
box-shadow: 2px 2px 5px rgba(0, 0, 0, 0.2);
min-width: 180px;
border-radius: 8px;
}
.org-container-style2 .top-boss {
background-color: #2c3e50;
}
.org-container-style2 .top-boss.second {
background-color: #546e7a;
;
}
/* 중앙 수직선 및 감사실 연결 */
.org-container-style2 .mid-section {
height: 100px;
position: relative;
display: flex;
justify-content: center;
}
.org-container-style2 .vertical-line.main {
width: 2px;
background: #ced4da;
height: 100%;
position: relative;
}
.org-container-style2 .joint-point {
position: absolute;
top: 50%;
left: 50%;
transform: translate(-50%, -50%);
width: 10px;
height: 10px;
background: #fff;
border: 2px solid #546e7a;
border-radius: 50%;
z-index: 2;
box-sizing: border-box;
}
.org-container-style2 .branch-line.side {
position: absolute;
top: 50%;
left: 0;
width: 80px;
height: 2px;
background: #ced4da;
}
.org-container-style2 .node.sub-boss.side {
position: absolute;
left: 80px;
top: 50%;
transform: translateY(-50%);
background-color: #576574;
}
/* 하단 부서 연결선 (가로다리) */
.org-container-style2 .connector-area {
position: relative;
height: 10px;
margin-top: 40px;
}
.org-container-style2 .connector-area:after {
content: "";
position: absolute;
top: -40px;
left: 50%;
transform: translateX(-50%);
width: 2px;
height: 40px;
background: #ced4da;
}
.org-container-style2 .horizontal-bridge {
position: absolute;
top: 0;
left: 12.5%;
width: 75%;
height: 2px;
background: #ced4da;
}
/* 부서 레이아웃 */
.org-container-style2 .dept-container {
display: flex;
justify-content: space-between;
gap: 10px;
padding: 0 0px;
}
.org-container-style2 .dept-item {
flex: 1;
position: relative;
padding-top: 30px;
}
/* 부서별 수직 연결선 및 포인트 */
.org-container-style2 .dept-item::before {
content: "";
position: absolute;
top: -10px;
left: 50%;
transform: translateX(-50%);
width: 2px;
height: 40px;
background: #ced4da;
}
.org-container-style2 .dept-item::after {
content: "";
position: absolute;
top: -14px;
left: 50%;
transform: translateX(-50%);
width: 10px;
height: 10px;
box-sizing: border-box;
background: #fff;
border: 2px solid #546e7a;
border-radius: 50%;
}
/* 부서 카드 스타일 */
.org-container-style2 .dept-node {
background-color: #fff;
border: 1px solid #e9ecef;
border-radius: 12px;
overflow: hidden;
box-shadow: 0 6px 15px rgba(0, 0, 0, 0.05);
}
.org-container-style2 .dept-header {
padding: 18px 10px;
font-weight: 800;
font-size: 17px;
color: #2c3e50;
background: #f8f9fa;
border-top: 4px solid #3498db;
}
.org-container-style2 .team-list {
padding: 15px 20px;
font-size: 15px;
line-height: 1.8;
color: #636e72;
text-align: left;
}
.org-container-style2 .team-list p {
margin: 0;
position: relative;
padding-left: 15px;
}
.org-container-style2 .team-list p::before {
content: "•";
position: absolute;
left: 0;
color: #3498db;
font-weight: bold;
}
/* 모바일 반응형 (768px 이하) */
@media (max-width: 768px) {
/* 1. 전체 컨테이너 패딩 조절 */
.org-container-style2 {
padding: 20px 10px;
}
.org-container-style2 .hierarchy-top {
text-align: left;
}
/* 2. 감사실(옆으로 삐져나온 노드) 처리 */
.org-container-style2 .mid-section {
display: block;
padding-left: 20px;
}
/* 3. 이사(second) 노드 간격 조절 */
.org-container-style2 .top-boss.second {
margin-bottom: 20px;
}
/* 4. 부서 레이아웃 세로 정렬 */
.org-container-style2 .dept-container {
flex-direction: column;
gap: 20px;
padding-left: 0px;
position: relative;
}
.org-container-style2 .dept-container:before {
content: "";
position: absolute;
top: -20px;
left: 20px;
width: 2px;
height: 100%;
background: #ced4da;
}
/* 5. 부서 간 불필요한 모든 연결선 제거 */
.org-container-style2 .connector-area {
display: none;
/* 가로다리 영역 전체 숨김 */
}
.org-container-style2 .dept-item {
width: 100%;
max-width: 350px;
/* 모바일에서 너무 퍼지지 않게 제한 */
padding-top: 0;
}
.org-container-style2 .dept-item::before,
.org-container-style2 .dept-item::after {
display: none !important;
/* 부서 위 수직선과 점 제거 */
}
/* 6. 내부 텍스트 크기 미세 조정 */
.org-container-style2 .node {
font-size: 18px;
padding: 12px 20px;
min-width: 160px;
text-align: center;
}
}
</style>
<div class="org-chart org-container-style2">
<div class="hierarchy-top">
<div class="node top-boss">대표이사</div>
<div class="mid-section">
<div class="vertical-line main">
<div class="joint-point"></div>
<div class="branch-line side"></div>
<div class="node sub-boss side">감사실</div>
</div>
</div>
<div class="node top-boss second">이사</div>
</div>
<div class="connector-area">
<div class="horizontal-bridge"></div>
</div>
<div class="dept-container">
<div class="dept-item">
<div class="dept-node">
<div class="dept-header">경영지원실</div>
<div class="team-list">
<p>인사/총무팀</p>
<p>재무/회계팀</p>
</div>
</div>
</div>
<div class="dept-item">
<div class="dept-node">
<div class="dept-header" style="border-top-color: #e67e22;">전시사업부</div>
<div class="team-list">
<p>전시기획팀</p>
<p>전시디자인팀</p>
<p>공무 설계팀</p>
</div>
</div>
</div>
<div class="dept-item">
<div class="dept-node">
<div class="dept-header" style="border-top-color: #27ae60;">시공사업부</div>
<div class="team-list">
<p>프로젝트 제작팀</p>
<p>유지보수/관리팀</p>
</div>
</div>
</div>
<div class="dept-item">
<div class="dept-node">
<div class="dept-header" style="border-top-color: #9b59b6;">R&D 연구소</div>
<div class="team-list">
<p>S/W 개발팀</p>
<p>H/W 개발팀</p>
</div>
</div>
</div>
</div>
</div>

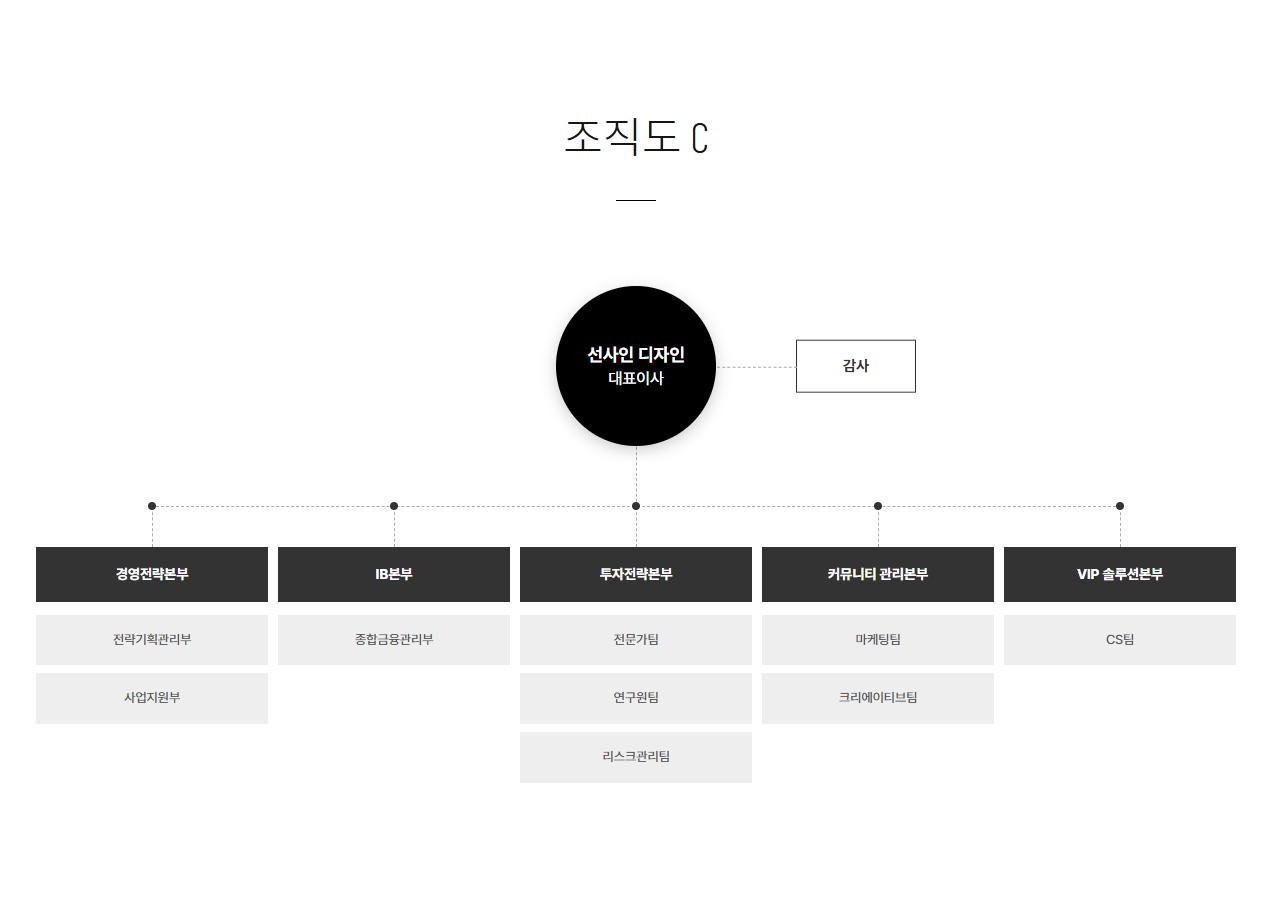

<style>
/* 기본 설정 */
.org-container-style3.org-wrap {
max-width: 1200px;
margin: 50px auto;
font-family: 'Pretendard', 'Malgun Gothic', sans-serif;
text-align: center;
color: #333;
}
/* 대표이사 원형 노드 */
.org-container-style3 .org-top-section {
position: relative;
display: flex;
justify-content: center;
align-items: center;
margin-bottom: 60px;
}
.org-container-style3 .ceo-node {
width: 160px;
height: 160px;
background: #000;
color: #fff;
border-radius: 50%;
display: flex;
flex-direction: column;
justify-content: center;
align-items: center;
font-size: 18px;
font-weight: bold;
line-height: 1.4;
z-index: 2;
box-shadow: 0 4px 15px rgba(0, 0, 0, 0.2);
}
.org-container-style3 .ceo-node span {
font-weight: normal;
font-size: 16px;
}
/* 감사 노드 */
.org-container-style3 .audit-node {
position: absolute;
left: calc(50% + 160px);
/* 중앙(50%)에서 오른쪽으로 120px 지점 */
top: 50%;
transform: translateY(-50%);
width: 120px;
/* 크기를 살짝 줄여 더 깔끔하게 */
padding: 10px;
border: 1px solid #333;
background: #fff;
font-weight: bold;
font-size: 15px;
z-index: 1;
}
/* 감사 연결 점선 */
.org-container-style3 .audit-node::before {
content: "";
position: absolute;
left: -80px;
top: 50%;
width: 80px;
border-top: 1px dashed #aaa;
}
/* 메인 가로 연결선 */
.org-container-style3 .org-main-line {
width: 80%;
margin: 0 auto;
border-top: 1px dashed #aaa;
position: relative;
}
.org-container-style3 .org-main-line::before {
/* 수직선 */
content: "";
position: absolute;
top: -60px;
left: 50%;
width: 1px;
height: 60px;
border-left: 1px dashed #aaa;
}
/* 하단 본부 레이아웃 */
.org-container-style3 .dept-container {
display: flex;
justify-content: space-between;
align-items: flex-start;
margin-top: 40px;
gap: 10px;
}
.org-container-style3 .dept-column {
flex: 1;
display: flex;
flex-direction: column;
gap: 8px;
position: relative;
}
/* 본부 제목 (검정 박스) */
.org-container-style3 .dept-head {
background: #333;
color: #fff;
padding: 12px 5px;
font-size: 14px;
font-weight: bold;
margin-bottom: 5px;
}
/* 팀 박스 (회색 박스) */
.org-container-style3 .team-box {
background: #eeeeee;
padding: 10px 5px;
font-size: 13px;
color: #555;
}
/* 본부 상단 점선 포인트 */
.org-container-style3 .dept-column::before {
content: "";
width: 8px;
height: 8px;
border-radius: 50%;
background-color: #333;
font-size: 10px;
position: absolute;
top: -45px;
left: 50%;
transform: translateX(-50%);
z-index: 2;
}
.org-container-style3 .dept-column::after {
content: "";
width: 1px;
height: 40px;
border-left: 1px dashed #aaa;
font-size: 10px;
position: absolute;
top: -40px;
left: 50%;
z-index: 1;
}
/* 모바일 반응형 처리 */
@media (max-width: 900px) {
.org-container-style3 .dept-container {
flex-direction: column;
align-items: center;
}
.org-container-style3 .dept-column {
width: 100%;
max-width: 300px;
margin-bottom: 30px;
}
.org-container-style3 .audit-node {
left: calc(50% + 20px);
top: calc(100% + 30px);
}
.org-container-style3 .org-main-line,
.org-container-style3 .dept-column::before {
display: none;
}
.org-container-style3 .dept-column:first-child::after {
content: "";
width: 1px;
height: 60px;
border-radius: 50%;
border-left: 1px dashed #aaa;
font-size: 10px;
position: absolute;
top: -60px;
left: 50%;
z-index: 1;
}
.org-container-style3 .audit-node::before {
width: 20px;
left: -20px;
rotate: 45deg;
top: -10px;
}
}
</style>
<div class="org-wrap org-container-style3">
<div class="org-top-section">
<div class="ceo-node">
선사인 디자인<br><span>대표이사</span>
</div>
<div class="audit-node">
감사
</div>
</div>
<div class="org-main-line"></div>
<div class="dept-container">
<div class="dept-column">
<div class="dept-head">경영전략본부</div>
<div class="team-box">전략기획관리부</div>
<div class="team-box">사업지원부</div>
</div>
<div class="dept-column">
<div class="dept-head">IB본부</div>
<div class="team-box">종합금융관리부</div>
</div>
<div class="dept-column">
<div class="dept-head">투자전략본부</div>
<div class="team-box">전문가팀</div>
<div class="team-box">연구원팀</div>
<div class="team-box">리스크관리팀</div>
</div>
<div class="dept-column">
<div class="dept-head">커뮤니티 관리본부</div>
<div class="team-box">마케팅팀</div>
<div class="team-box">크리에이티브팀</div>
</div>
<div class="dept-column">
<div class="dept-head">VIP 솔루션본부</div>
<div class="team-box">CS팀</div>
</div>
</div>
</div>
